Product Advantages:
1. **Long Lifespan (Photovoltaic and Storage Systems Have the Same Lifespan):**
- Battery cells are guaranteed to have a long service life with cycle times exceeding 8,000 cycles.
- PACK lifespan is enhanced by 10% through liquid cooling management, ensuring a measured cell temperature difference of less than 2.5°C.
- A long-life system design incorporates high-precision temperature management, intelligent Depth of Discharge (DOD) management (adjusted dynamically based on lifecycle), anti-shock and slow-start algorithms, as well as an AI-based iterative charge/discharge optimization algorithm, resulting in a 10% increase in overall lifespan.
2. **High Security and Reliability:**
- Utilizes top-grade Lithium Iron Phosphate (LFP) battery cells with core-level safety assurance.
- Features three-tier intelligent battery management for comprehensive monitoring coverage.
- Provides full lifecycle safety early warning (ΔV + ΔT + ΔR) with early identification and prevention within 2 hours to prevent thermal runaway.
- Multi-dimensional fire safety protection includes cabin-level/PACK-level active/passive gas/water fire suppression systems, real-time monitoring, sound/light alarms, and remote alerts.
3. **All-in-One Design Concept:**
- The entire system adopts an "All-in-One" design integrating battery systems, fire protection systems, temperature control systems, and 3S systems to achieve product-level high integration.
- Modular multi-in-one integration and domain-level fusion control further reduce costs while enhancing reliability.
4. **High-Yield Guarantee:**
- High efficiency ensures optimal returns with power conversion efficiency reaching up to 98.5% due to the adoption of next-generation Silicon Carbide (SiC) technology, achieving a system efficiency of up to 91%.
- Intelligent variable frequency cooling reduces auxiliary power consumption by 20%, saving 5 kilowatt-hours of electricity per day for each unit.
- A cloud-edge collaboration-based intelligent operation and maintenance strategy optimizes charge/discharge management mechanisms, improving user revenue through advanced modeling techniques.
5. **Flexible Application Solutions:**
- Comprehensive product range covering industrial and commercial application scenarios from hundreds of kWh to MWh, offering flexible capacity adjustments compatible with multiple battery cell specifications.
- Single-unit customization addresses specific user requirements such as high power, low noise, high IP protection, high reliability, and long service life, along with software/hardware customization options.
- Matrix networking supports 3–5 levels of network management, enabling scalable power and capacity expansion.
6. **Efficient Installation and Operation & Maintenance:**
- Cloud-edge collaboration enables cluster management and control, providing all-weather remote intelligent monitoring and optimized intelligent operation and maintenance.
- Supports fault early warning and self-diagnosis, reducing operation and maintenance costs and downtime.
- Modular design facilitates efficient inspection and maintenance.
- Prefabricated design and installation save 15% of on-site commissioning time.

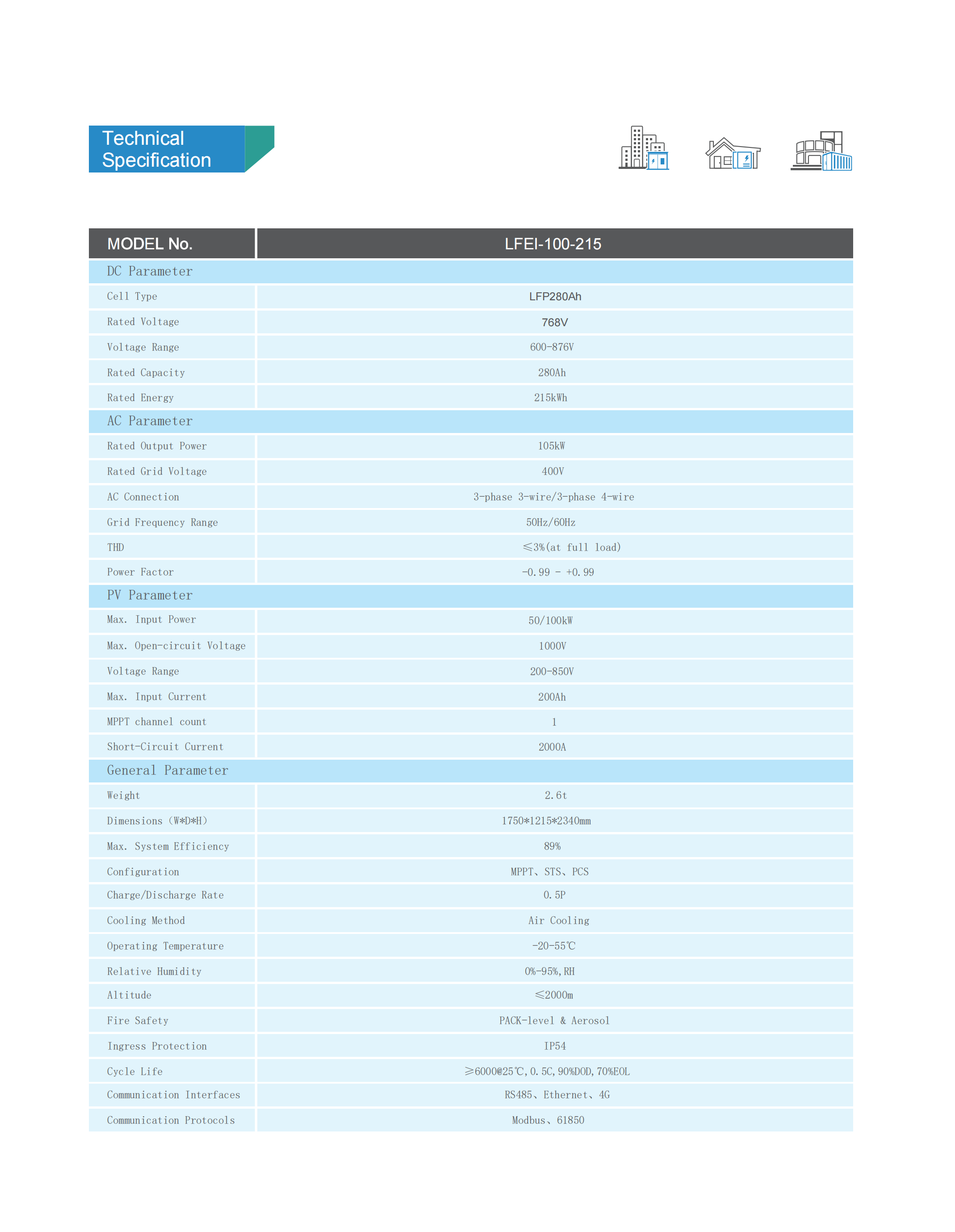

Technical Specification:
MODEL No. | LFEI-100-215 |
DC Parameter | |
Cell Type | LFP280Ah |
Rated Voltage | 768V |
Voltage Range | 600-876V |
Rated Capacity | 280Ah |
Rated Energy | 215kWh |
AC Parameter | |
Rated Output Power | 105kW |
Rated Grid Voltage | 400V |
AC Connection | 3-phase 3-wire/3-phase 4-wire |
Grid Frequency Range | 50Hz/60Hz |
THD | ≤3%(at full load) |
Power Factor | -0.99-+0.99 |
PV Parameter | |
Max.Input Power | 50/100kW |
Max.Open-circuit Voltage | 1000V |
Voltage Range | 200-850V |
Max.Input Current | 200Ah |
MPPT channel count | 1 |
Short-Circuit Current | 2000A |
General Parameter | |
Weight | 2.6t |
Dimensions(W*D*H) | 1750*1215*2340mm |
Max.System Efficiency | 89% |
Configuration | MPPT、STS、PCS |
Charge/Discharge Rate | 0.5P |
Cooling Method | Air Cooling |
Operating Temperature | -20-55℃ |
Relative Humidity | 0%-95%,RH |
Altitude | ≤2000m |
Fire Safety | PACK-level &Aerosol |
Ingress Protection | IP54 |
Cycle Life | ≥6000@25℃,0.5C,90%DOD,70%EOL |
Communication Interfaces | RS485、Ethernet、4G |
Communication Protocols | Modbus、61850 |
