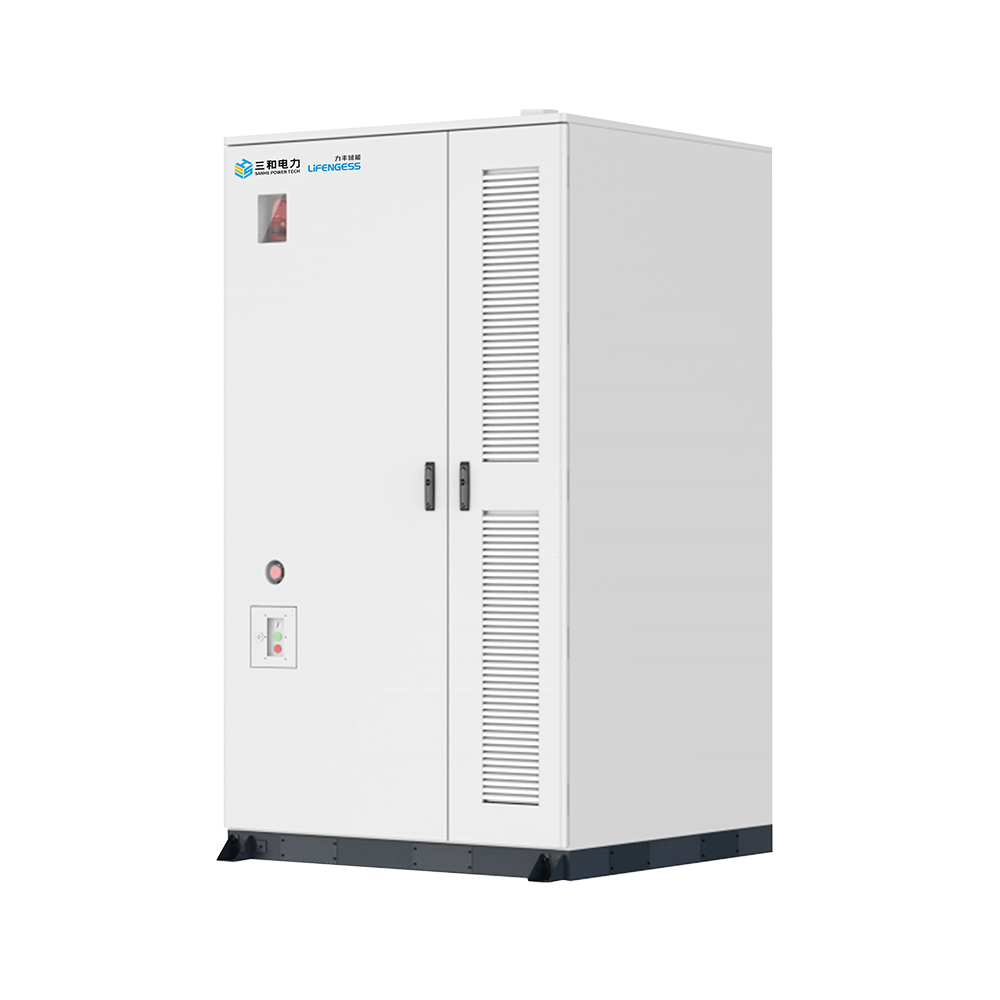

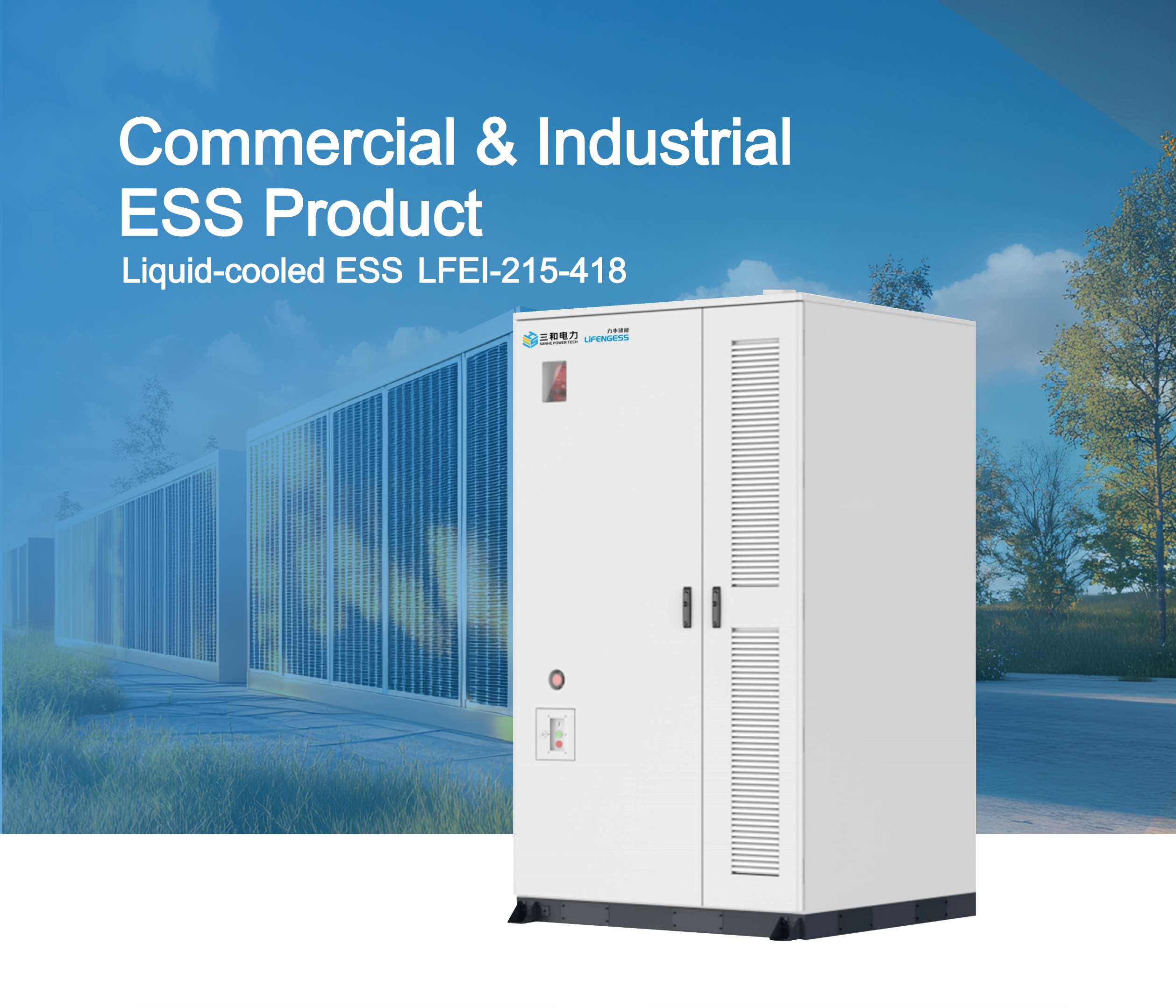

LFEI-215-418
sanhe
| PDF Export | |
Product Advantages:
Intelligent Control
• Cloud-edge-device collaborative control empowered by big data algorithms
•Remote monitoring and configuration with simplified and convenient operation and maintenance
• Strategy optimization algorithms to maximize customer benefits
High Efficiency and Stability
• Efficient liquid cooling with battery cell temperature difference ≤3℃
• Core units adopt modular components/standard wiring harnesses
• Modular PCS
Safe and Reliable
• Battery cells from top-tier brands, Grade A cells
• Active and passive fire safety design
• Safety warning algorithms for early identification and handling
Flexible Configuration
• Supports parallel connection
• Integrated transportation for easy installation
• Flexible site installation and layout
• Modular design for convenient maintenance and upgrades
Technical Specification：
| MODEL No. | LFEI-125-260 |
| DC Parameter | |
| Cell Type | LFP314Ah |
| Battery System Configuration | 1P260S |
| Rated Voltage | 832V |
| Voltage Range | 728-923V |
| Rated Energy | 260kWh |
| Standard Charge/Discharge Current | 157A |
| Max.Charge/Discharge Current | 194A |
| Cooling Method | Liquid Cooling |
| AC Parameter | |
| Rated Charge/Discharge Power | 125kW |
| Max.Charge/Discharge Power | 150kW |
| Standard Charge/Discharge Current | 182A |
| Rated Grid Voltage | 400V |
| Grid Frequency Range | 50Hz |
| THD | <3%(Rated Power) |
| Power Factor >0.99 | |
| General Parameter | |
| System Efficiency | ≥86% |
| Cycle Life | ≥8000 |
| Dimensions(W*D*H) | 1175*1300*2310mm |
| Weight | 2.73t |
| Operating Temperature | -20-55℃ |
| Operating Humidity | 0%-85%,RH |
| Altitude | ≤2000m |
| Ingress Protection | IP54 |
| Fire Safety | PACK-level &Aerosol |
| Communication Interfaces | RS485、Ethernet |
| Communication Protocols Modbus、61850 | |
