Features:
Safe and reliable
Battery cells from top-tier brands, A-grade cells
Pre-assembled and debugged before leaving the factory
Distributed air conditioning automatic temperature control system design
Smart BMS
Integrated smart BMS, cloud-edge collaboration
Fast status monitoring and fault recording
Can achieve early warning and fault location
Reliable quality assurance
High-standard quality control system
Full-process quality assurance and control mechanism
Comprehensive services
10-year global warranty
One-stop localized support

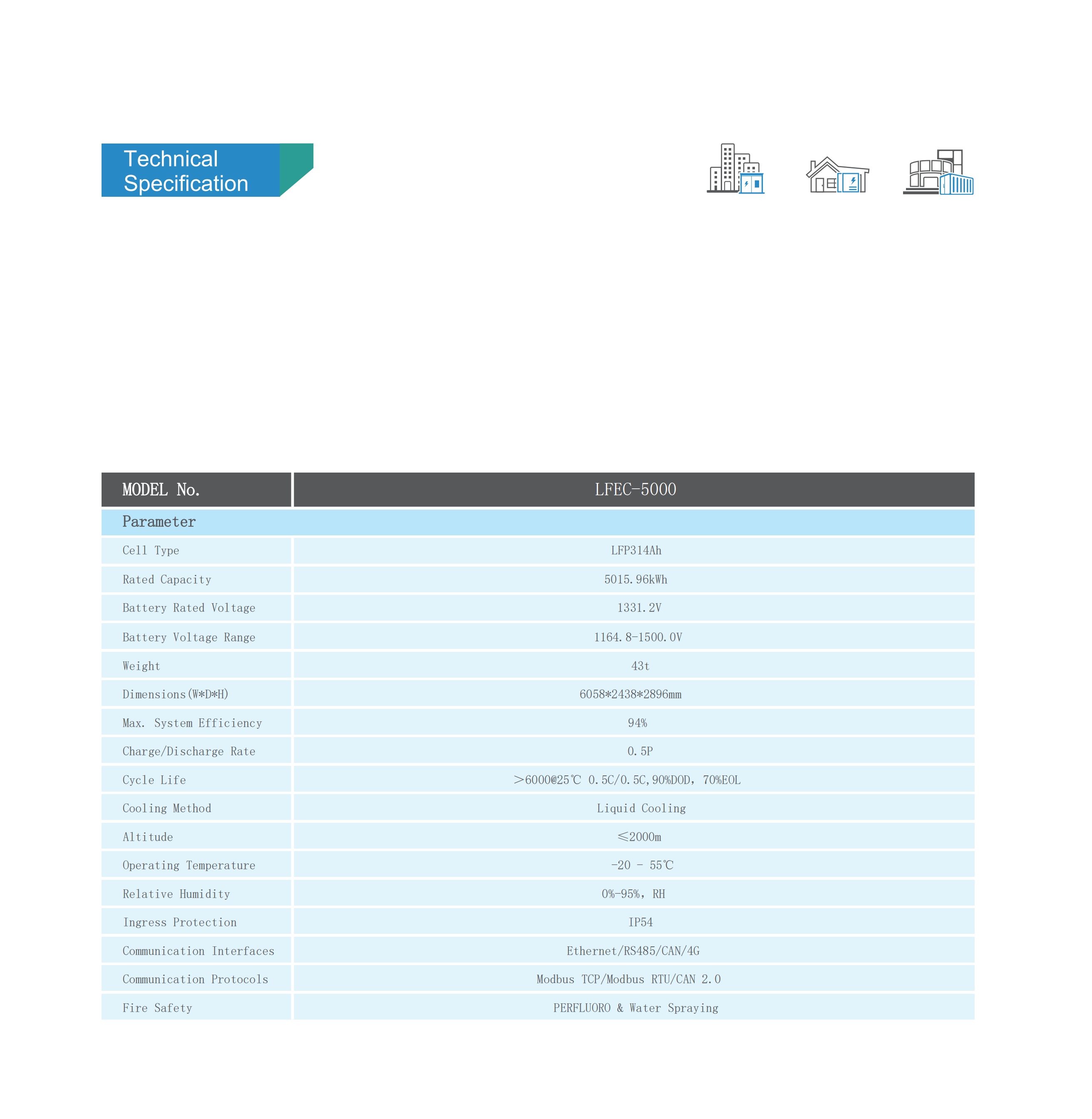

Technical Specification :
| MODEL No. | LFEC-5000 | ||||
| Parameter | |||||
| Cell Type | LFP314Ah | ||||
| Rated Capacity | 5015.96kWh | ||||
| Battery Rated Voltage | 1331.2V | ||||
| Battery Voltage Range | 1164.8-1500.0V | ||||
| Weight | 43t | ||||
| Dimensions(W*D*H) | 6058*2438*2896mm | ||||
| Max.System Efficiency | 94% | ||||
| Charge/Discharge Rate | 0.5P | ||||
| Cycle Life | >6000@25℃ 0.5C/0.5C,90%DOD,70%EOL | ||||
| Cooling Method | Liquid Cooling | ||||
| Altitude | ≤2000m | ||||
| Operating Temperature | -20-55℃ | ||||
| Relative Humidity | 0%-95%,RH | ||||
| Ingress Protection | IP54 | ||||
| Communication Interfaces | Ethernet/RS485/CAN/4G | ||||
| Communication Protocols | Modbus TCP/Modbus RTU/CAN 2.0 | ||||
| Fire Safety | PERFLUORO&Water Spraying | ||||
