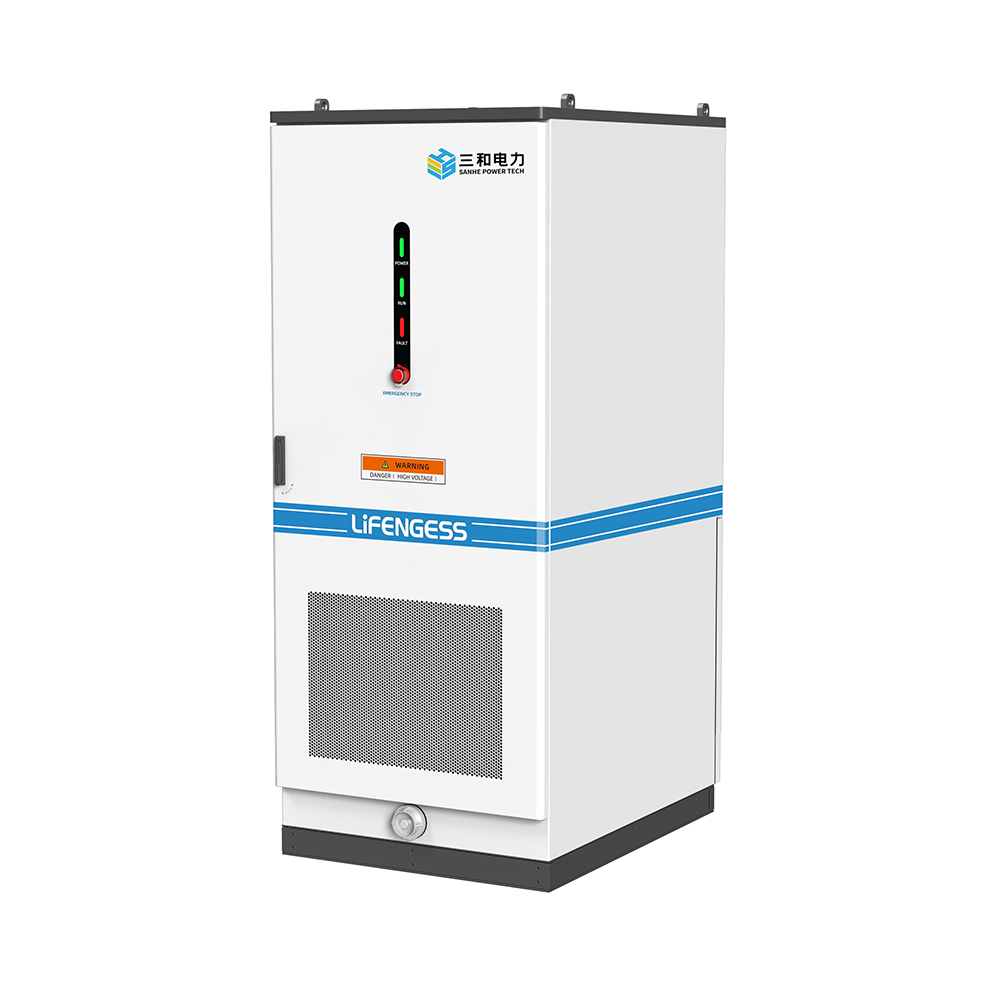

LFEI-100-233
sanhe
| PDF Export | |
Characteristics:
• Cloud-edge-device coordinated control with big data algorithms
• Remote monitoring and configuration for simplified operation and maintenance
• Strategy optimization algorithm to max. customer benefits
High Efficiency and Stability
• High-efficiency liquid cooling with ≤3℃ te-mperature difference between cells
• Modular components/standard wiring harness for core units
• Modular PCS
Safe and Reliable
• Tier-1 brand battery cells, Grade A cells
• Active and passive fire protection design
• Safety warning algorithm for early identification and handling
Flexible Configuration
• Supports parallel connection
• Integrated transportation for easy installation
• Flexible site layout and arrangemen
• Modular design for convenient maintenance and upgrades

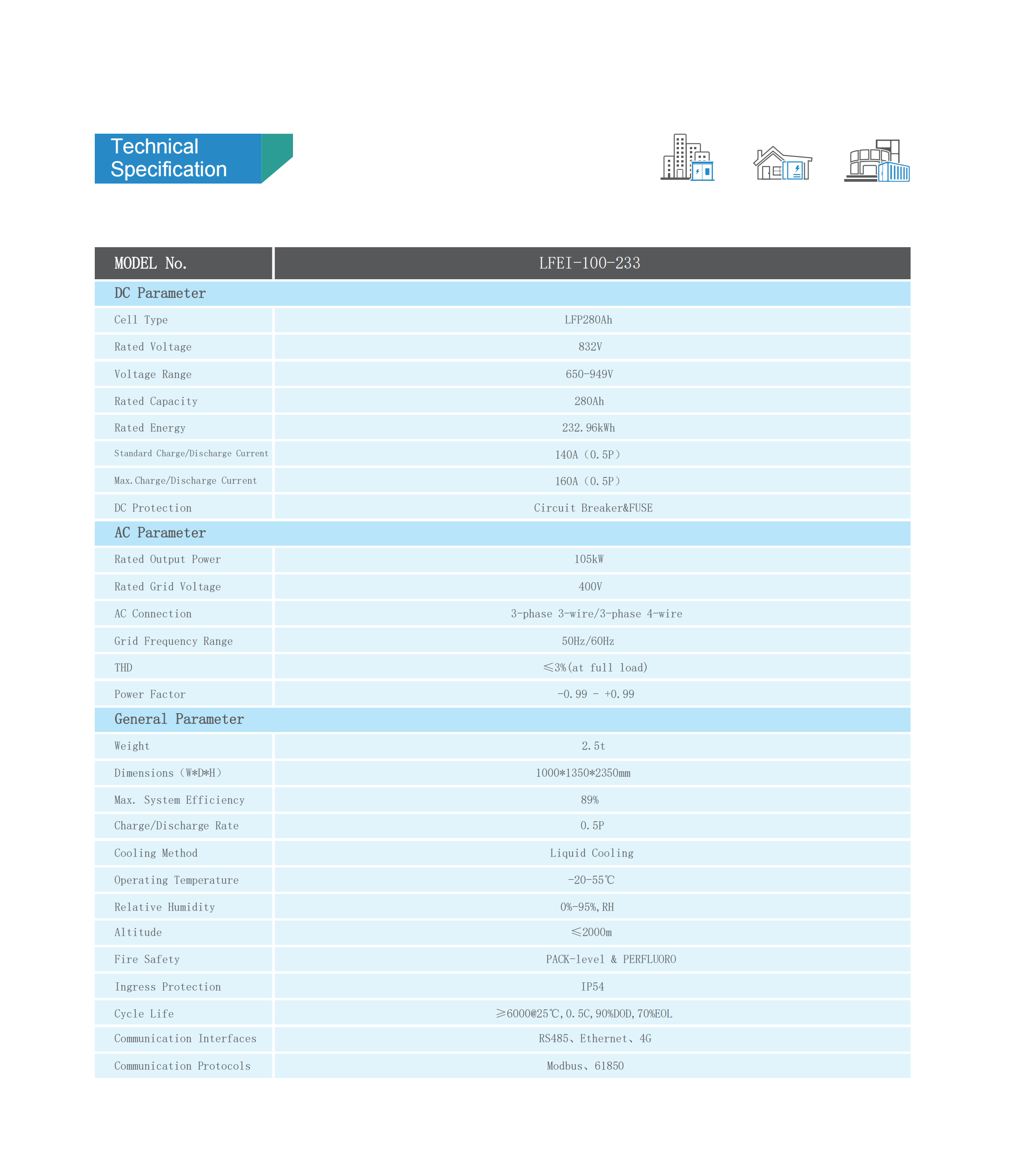

Technical Specification：
| MODEL No. | LFEI-100-233 |
| DC Parameter | |
| Cell Type | LFP280Ah |
| Rated Voltage | 832V |
| Voltage Range | 650-949V |
| Rated Capacity | 280Ah |
| Rated Energy | 232.96kWh |
| Standard Charge/Discharge Current | 140A(0.5P) |
| Max.Charge/Discharge Current | 160A(0.5P) |
| DC Protection | Circuit Breaker&FUSE |
| AC Parameter | |
| Rated Output Power | 105kW |
| Rated Grid Voltage | 400V |
| AC Connection | 3-phase 3-wire/3-phase 4-wire |
| Grid Frequency Range | 50Hz/60Hz |
| THD | ≤3%(at full load) |
| Power Factor | -0.99-+0.99 |
| General Parameter | |
| Weight | 2.5t |
| Dimensions(W*D*H) | 1000*1350*2350mm |
| Max.System Efficiency | 89% |
| Charge/Discharge Rate | 0.5P |
| Cooling Method | Liquid Cooling |
| Operating Temperature | -20-55℃ |
| Relative Humidity | 0%-95%,RH |
| Altitude | ≤2000m |
| Fire Safety | PACK-level&PERFLUORO |
| Ingress Protection | IP54 |
| Cycle Life | ≥6000@25℃,0.5C,90%DOD,70%EOL |
| Communication Interfaces | RS485、Ethernet、4G |
| Communication Protocols | Modbus、61850 |
