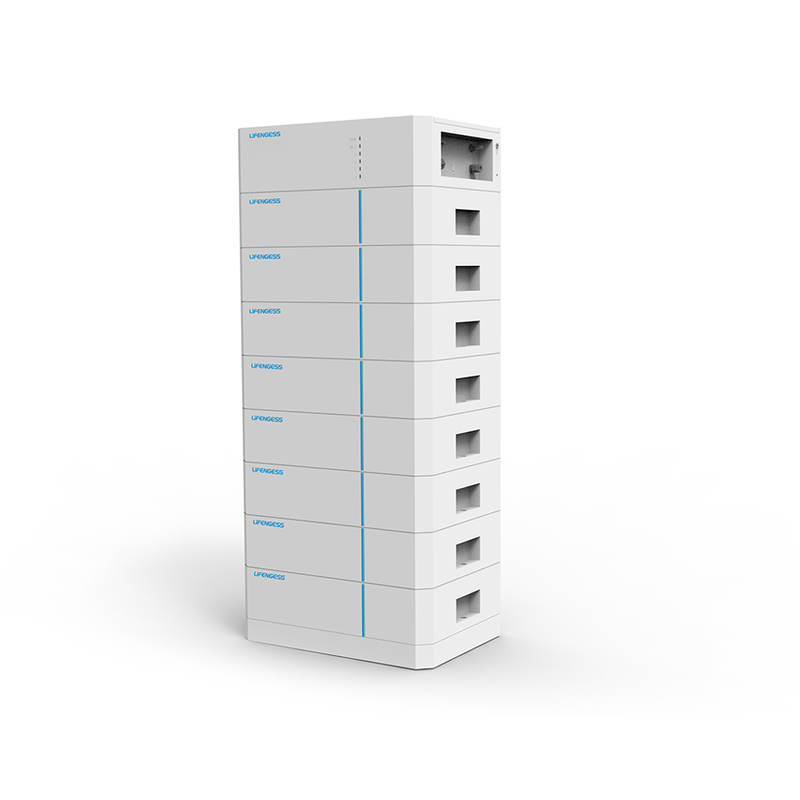

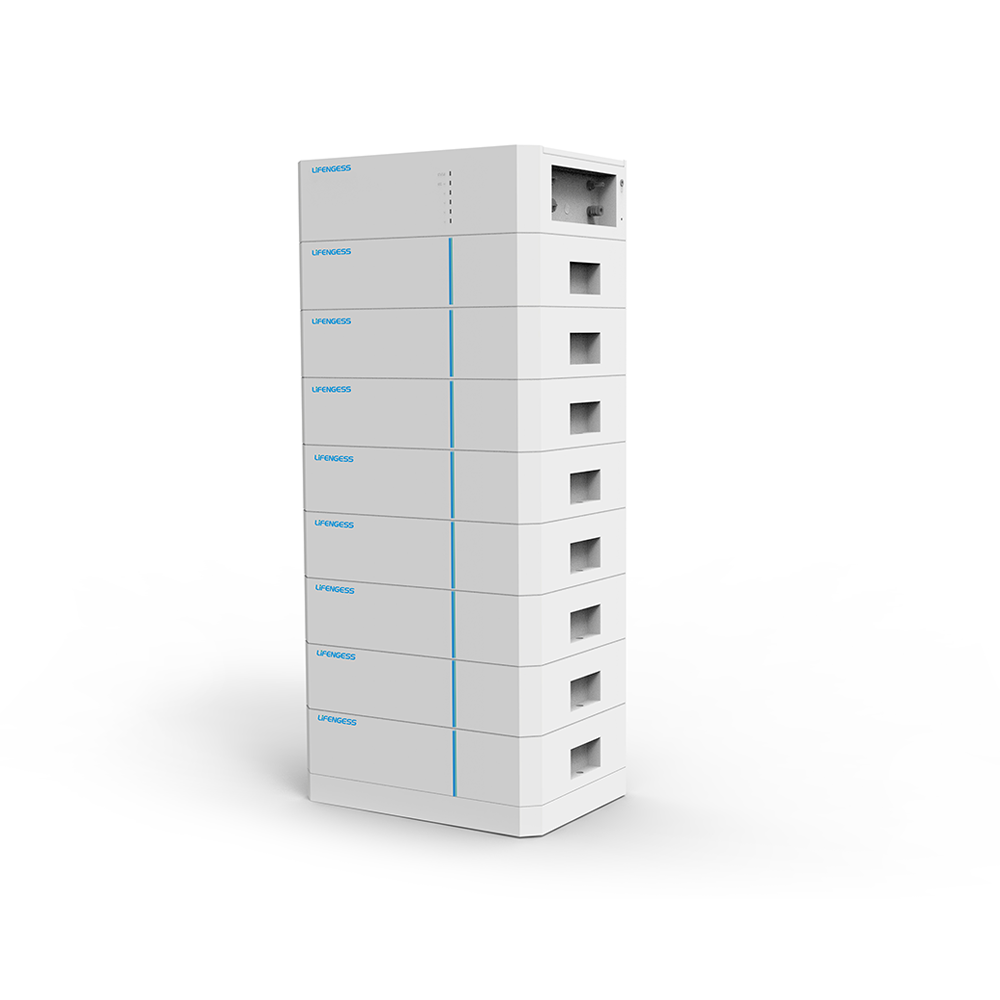

LFBH-10/15/12.5/17.5/20
sanhe
| PDF Export | |
Product Advantages:
Minimalist home design, aesthetically pleasing and easy to install;
Safe and reliable, featuring intelligent battery protection;
High-protection lithium iron phosphate (LiFePO4) battery;
High cycle stability and long lifespan;
Power outage protection for continuous home power supply;
High conversion efficiency with strong energy-saving performance;
Real-time data monitoring;

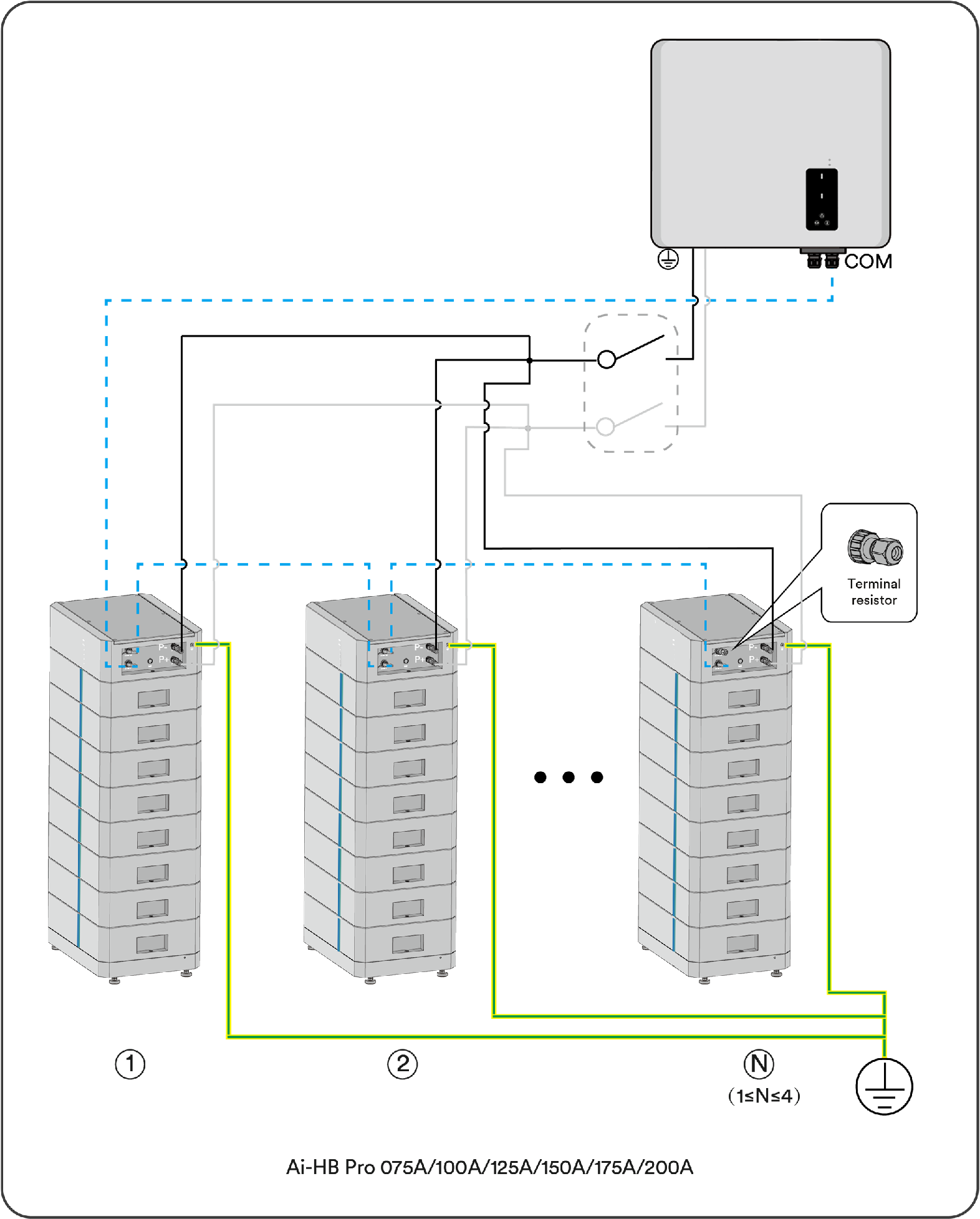

Product Installation:

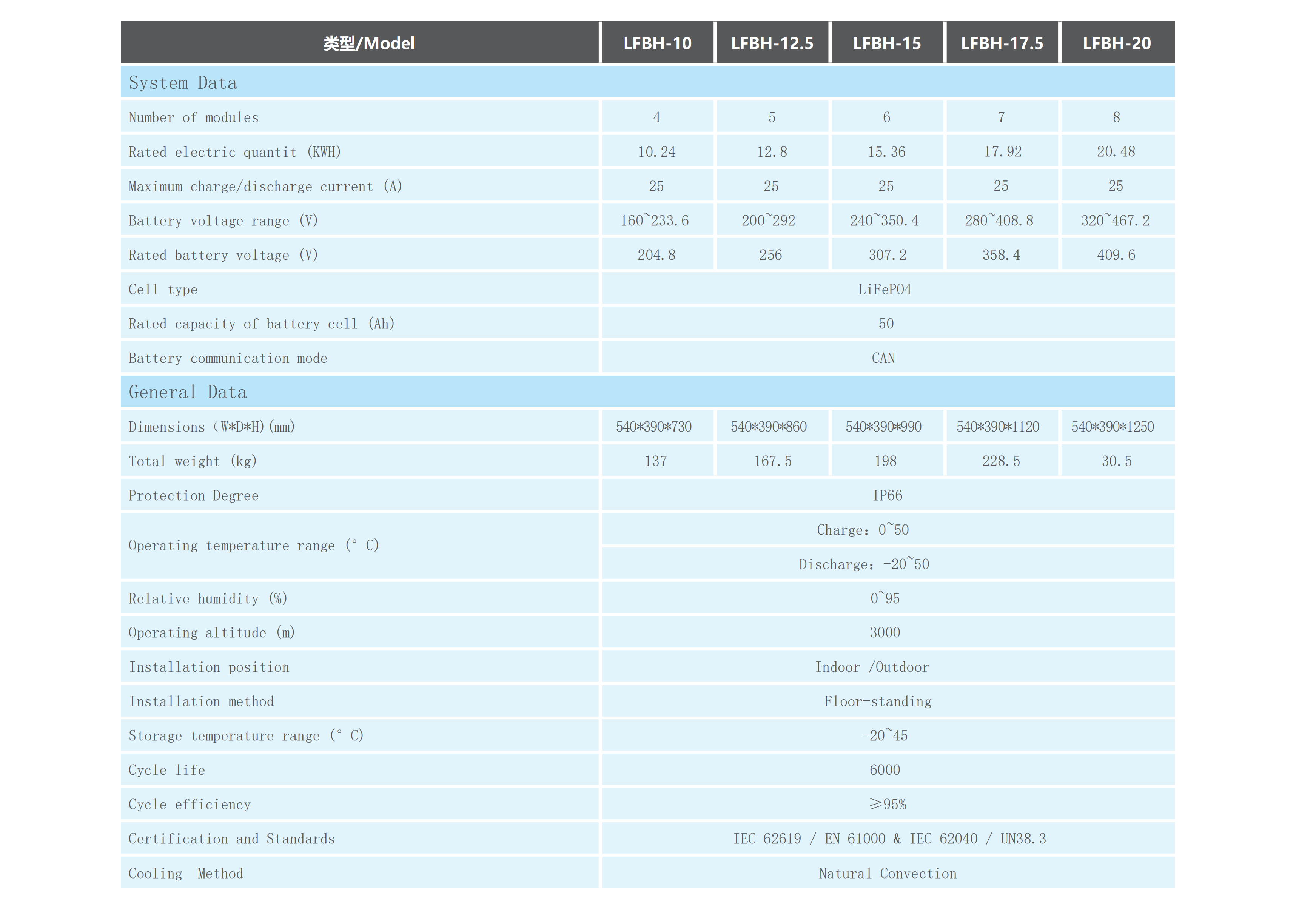

Specifications:
| 类型/Model | LFBH-10 | LFBH-12.5 | LFBH-15 | LFBH-17.5 | LFBH-20 |
| System Data | |||||
| Number of modules | 4 | 5 | 6 | 7 | 8 |
| Rated electric quantit(KWH) | 10.24 | 12.8 | 15.36 | 17.92 | 20.48 |
| Maximum charge/discharge current(A) | 25 | 25 | 25 | 25 | 25 |
| Battery voltage range(V) | 160~233.6 | 200~292 | 240~350.4 | 280~408.8 | 320~467.2 |
| Rated battery voltage(V) | 204.8 | 256 | 307.2 | 358.4 | 409.6 |
| Cell type | LiFeP04 | ||||
| Rated capacity of battery cell(Ah) | 50 | ||||
| Battery communication mode | CAN | ||||
| General Data | |||||
| Dimensions(W*D*H)(mm) | 540*390*730 | 540*390*860 | 540*390*990 | 540*390*1120 | 540*390*1250 |
| Total weight(kg) | 137 | 167.5 | 198 | 228.5 | 30.5 |
| Protection Degree | IP66 | ||||
| Operating temperature range(°C) | Charge:0~50 | ||||
| Discharge:-20~50 | |||||
| Relative humidity(%) | 0~95 | ||||
| Operating altitude(m) | 3000 | ||||
| Installation position | Indoor /Outdoor | ||||
| Installation method | Floor-standing | ||||
| Storage temperature range(°C) | -20~45 | ||||
| Cycle life | 6000 | ||||
| Cycle efficiency | ≥95% | ||||
| Certification and Standards | IEC 62619/EN 61000 &IEC 62040/UN38.3 | ||||
| Cooling Method | Natural Convection | ||||
