Product Introduction:
The residential energy storage system adopts a DC coupling mode, seamlessly integrating photovoltaic power generation with energy storage. It effectively stores excess electricity generated by the photovoltaic system, significantly increasing the self-consumption rate of electricity and substantially reducing reliance on the grid.
The solar storage system leverages peak and off-peak electricity price differentials for arbitrage operations, selling electricity during peak price periods and storing it during off-peak periods to maximize economic benefits. Moreover, users can utilize this system to help alleviate grid load while enjoying policy subsidies related to grid support activities, achieving substantial financial returns and striking an optimal balance between energy conservation and economic gains.
Product Advantages:
Sleek home design, aesthetically pleasing and easy to install;
Safe and reliable, featuring intelligent battery protection;
High-protection lithium iron phosphate battery;
High cycle stability and long lifespan;
Power outage protection for continuous home power supply;
High conversion efficiency with strong energy-saving performance;
Real-time data monitoring;

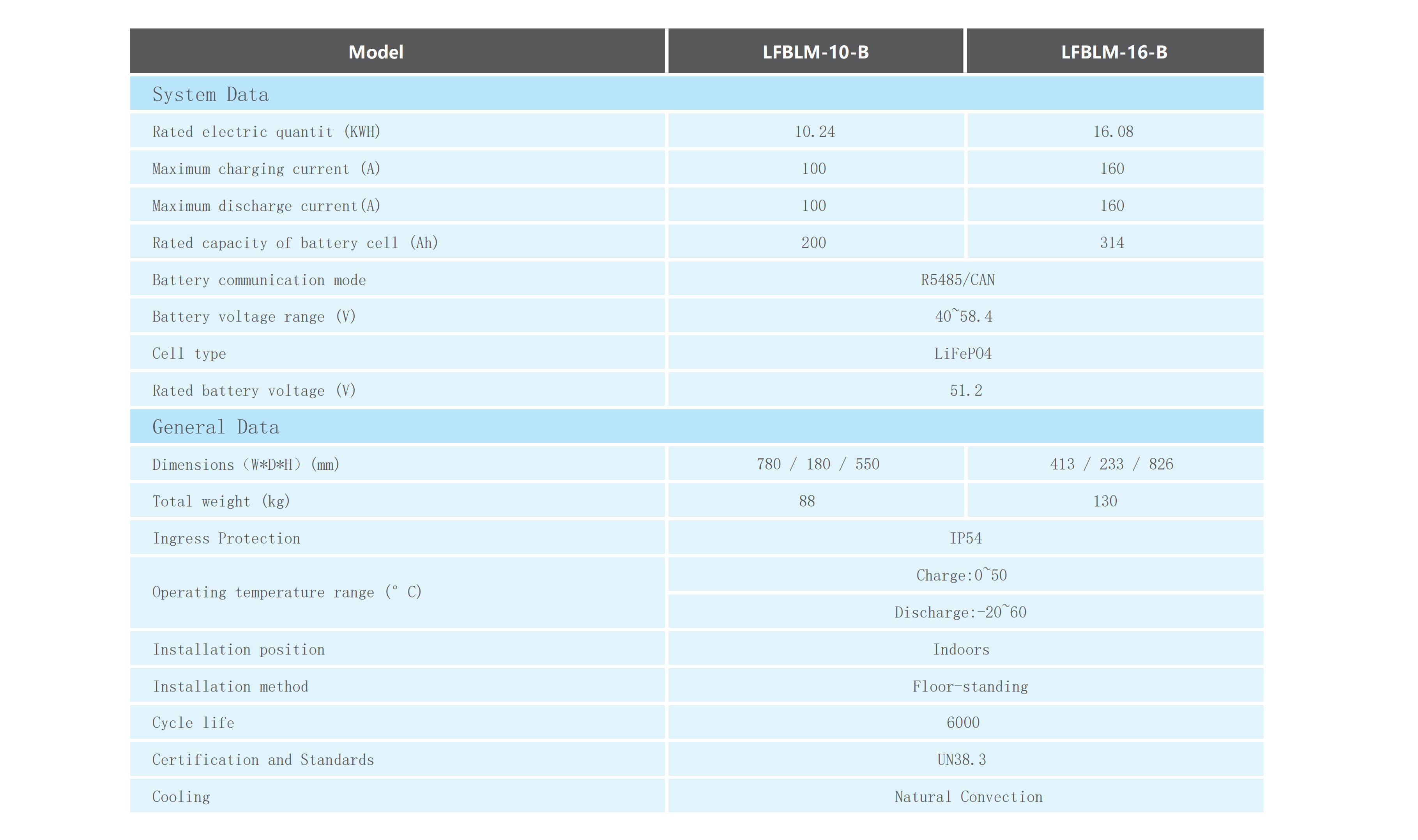

Product Specifications:
| Model | LFBLM-10-B | LFBLM-16-B |
| System Data | ||
| Rated electric quantit(KWH) | 10.24 | 16.08 |
| Maximum charging current(A) | 100 | 160 |
| Maximum discharge current(A) | 100 | 160 |
| Rated capacity of battery cell(Ah) | 200 | 314 |
| Battery communication mode | R5485/CAN | |
| Battery voltage range(V) | 40~58.4 | |
| Cell type | LiFeP04 | |
| Rated battery voltage(V) | 51.2 | |
| General Data | ||
| Dimensions(W*D*H)(mm) | 780/180/550 | 413/ 233/826 |
| Total weight(kg) | 88 | 130 |
| Ingress Protection | IP54 | |
| Operating temperature range(°C) | Charge:0~50 | |
| Discharge:-20~60 | ||
| Installation position | Indoors | |
| Installation method | Floor-standing | |
| Cycle life | 6000 | |
| Certification and Standards | UN38.3 | |
Cooling | Natural Convection | |
