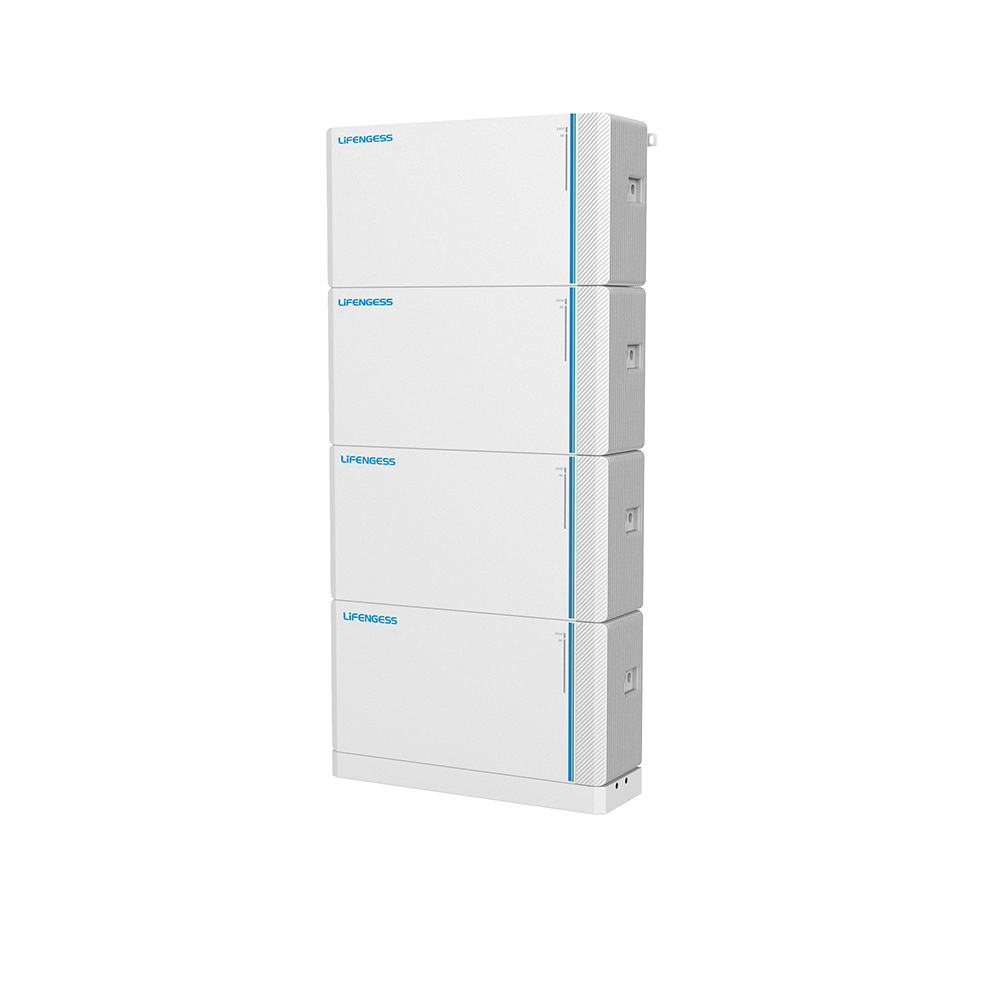

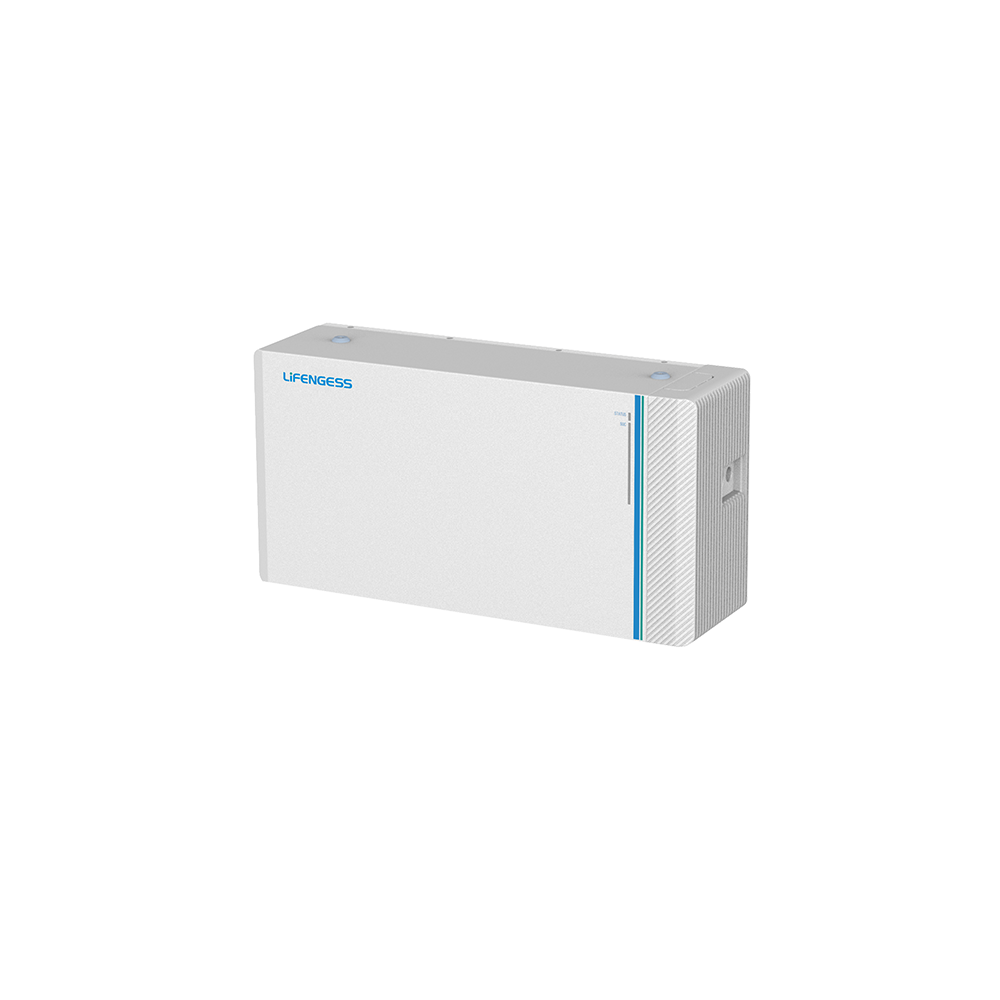

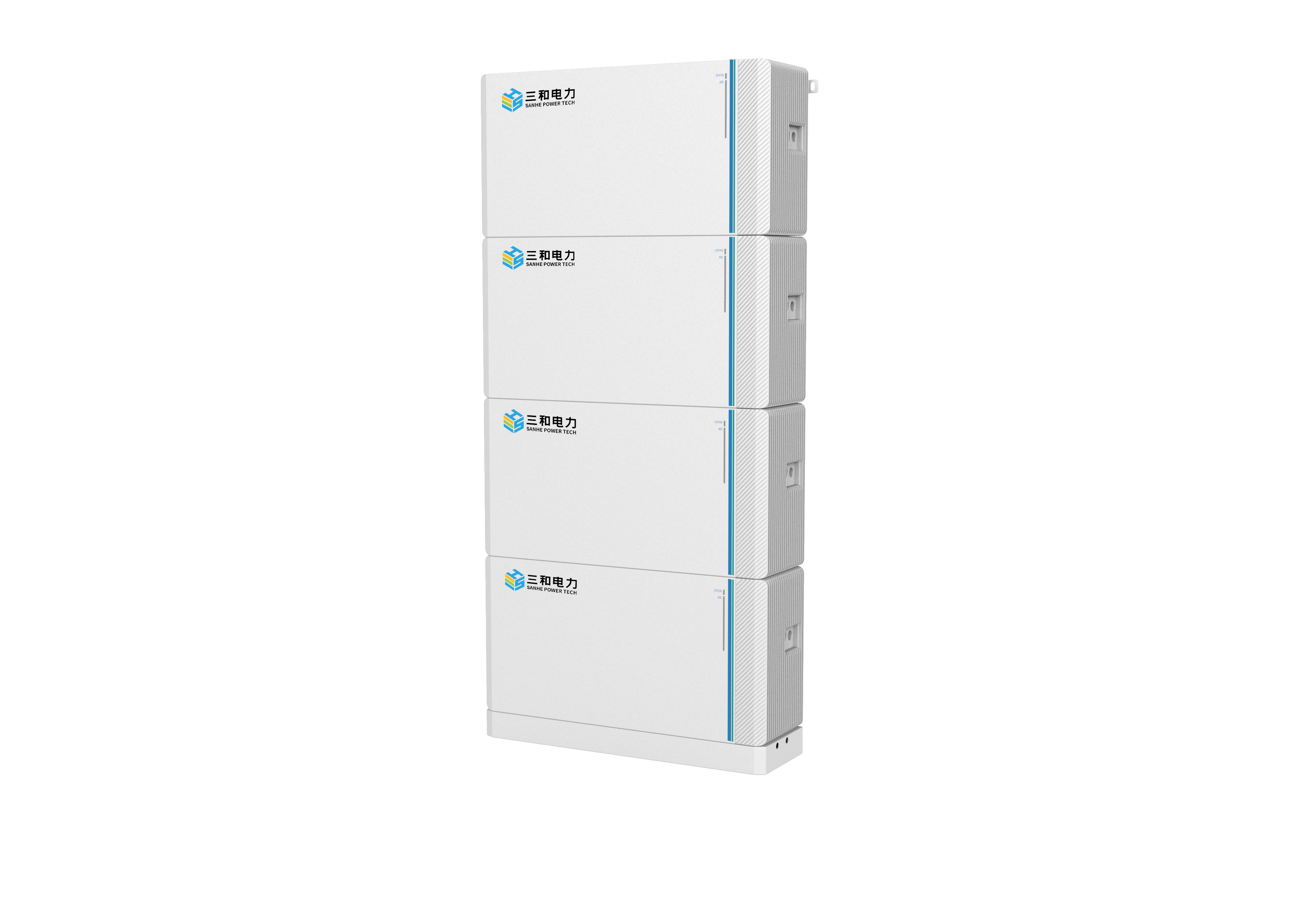

LFBL-5/10/15/20
sanhe
Availability: | |
---|---|
PDF Export | |
Product Advantages:
Sleek home design, aesthetically pleasing and easy to install;
Safe and reliable, featuring intelligent battery protection;
High-protection lithium iron phosphate battery;
High cycle stability and long lifespan;
Power outage protection for continuous home power supply;
High conversion efficiency and strong energy-saving performance;
Real-time data monitoring.

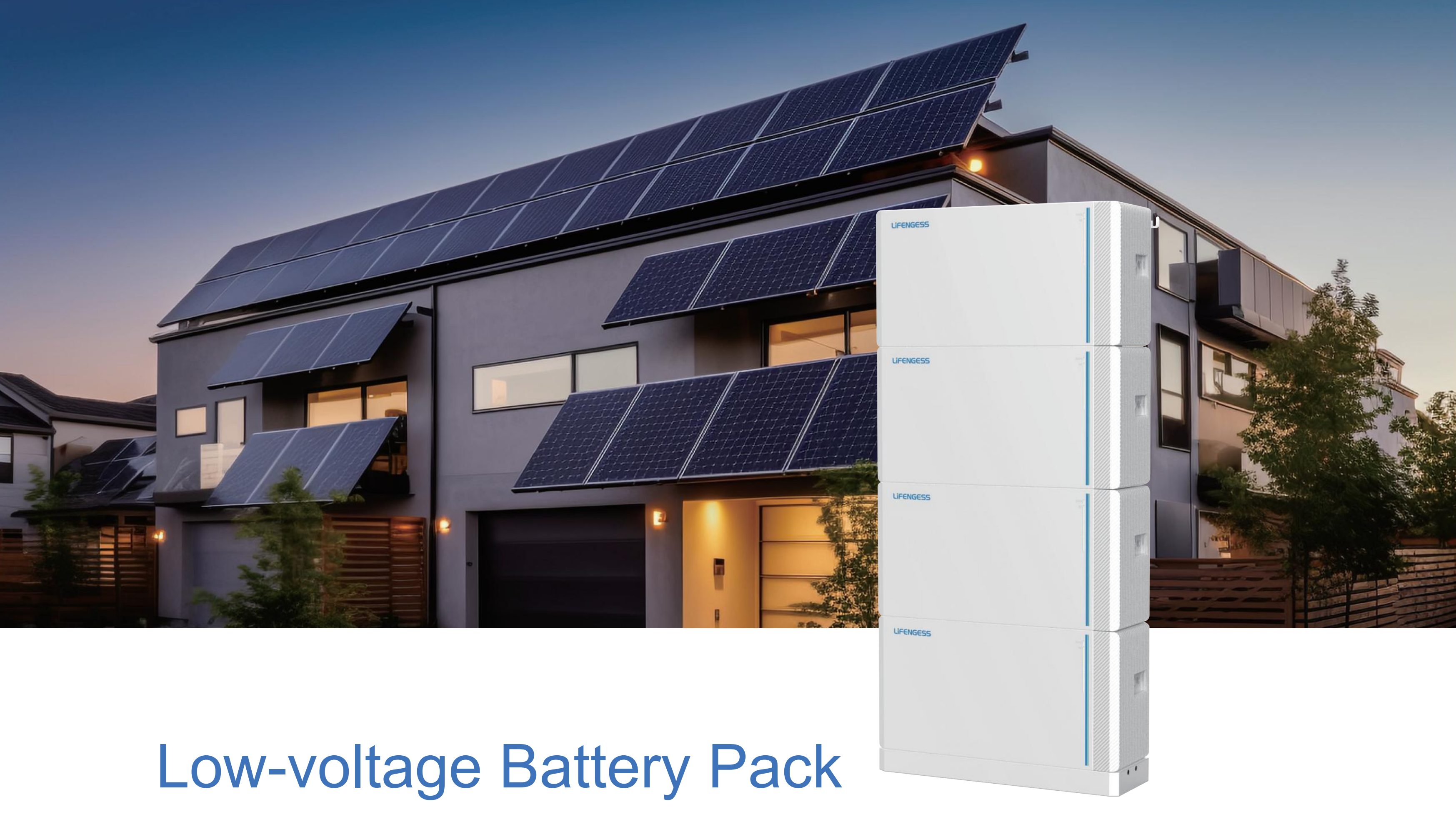

Product Installation:

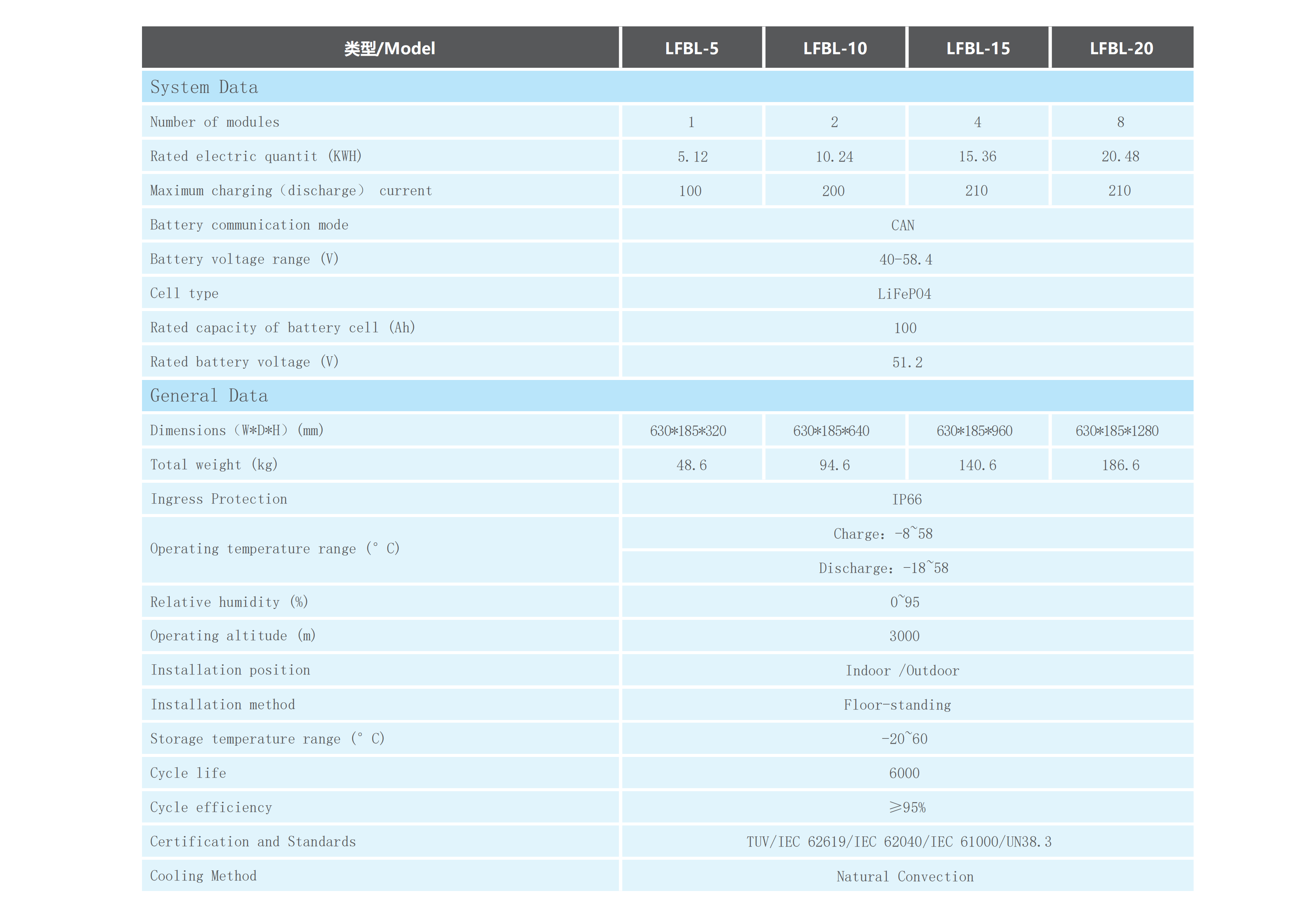

Product Specifications:
类型/Model | LFBL-5 | LFBL-10 | LFBL-15 | LFBL-20 |
System Data | ||||
Number of modules | 1 | 2 | 4 | 8 |
Rated electric quantit(KWH) | 5.12 | 10.24 | 15.36 | 20.48 |
Maximum charging(discharge)current | 100 | 200 | 210 | 210 |
Battery communication mode | CAN | |||
Battery voltage range(V) | 40-58.4 | |||
Cell type | LiFeP04 | |||
Rated capacity of battery cell(Ah) | 100 | |||
Rated battery voltage(V) | 51.2 | |||
General Data | ||||
Dimensions(W*D*H)(mm) | 630*185*320 | 630*185*640 | 630*185*960 | 630*185*1280 |
Total weight(kg) | 48.6 | 94.6 | 140.6 | 186.6 |
Ingress Protection | IP66 | |||
Operating temperature range(°C) | Charge:-8~58 | |||
Discharge:-18~58 | ||||
Relative humidity(%) | 0~95 | |||
Operating altitude(m) | 3000 | |||
Installation position | Indoor /Outdoor | |||
Installation method | Floor-standing | |||
Storage temperature range(°C) | -20~60 | |||
Cycle life | 6000 | |||
Cycle efficiency | ≥95% | |||
Certification and Standards | TUV/IEC 62619/IEC 62040/IEC 61000/UN38.3 | |||
Cooling Method | Natural Convection |
